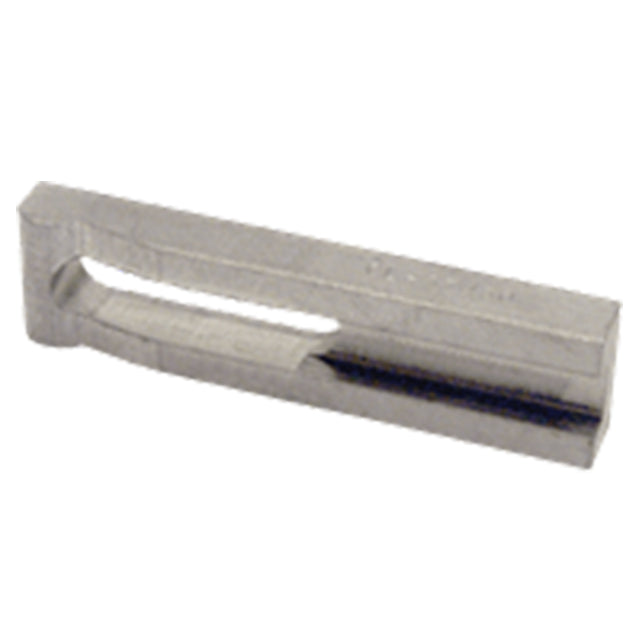

Slotted-Heel Clamp
Mini-size stainless steel version of Slotted-Heel Clamp Straps, with a radius nose to provide firm workpiece contact. These clamp straps have a slot underneath to slide straight back for clear loading.
Application Information
Slotted-Heel Clamp Straps have a slot underneath to slide straight back for clear loading.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Stud Size | B | C | D | E | F | G | H | J | K | L |
| 1/4-20 | 3/8 | 5/8 | 2-1/2 | 1-1/8 | 15/16 | 1/4 | 3/8 | 9/32 | 1/8 | 9/32 |
