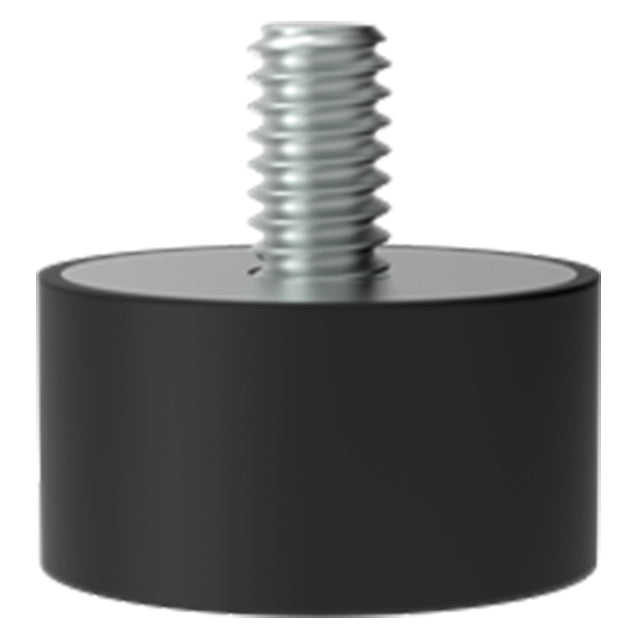

Vibration Isolation Mounts
Vibration/Isolation shock-absorbing mount designed to reduce vibration-related damage. The mount absorbs the majority of kinetic energy upon impact. Resulting in reduced shock/rebound damage and reduction in noise. These shock-absorbing mounts are frequently used as end-stop buffers or dampers.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Body | Natural Rubber (NR) | - | Black | Yes |
| Cover Plate | Steel | - | Zinc Plated | Yes |
| Threaded Stud | Steel | - | Zinc Plated | Yes |
Parts Specification
| A Diameter (Inch) | B (Inch) | C (Inch) | D Thread (Inch) | Spring Rate (lbf/in) | Max Load (lbf/in) | Max Deflection |
| 0.98" | 0.51" | 0.51" | 1/4-20" | 2140 Lbf/in | 214 Lbf/in | 0.10 |
