Cam Handles

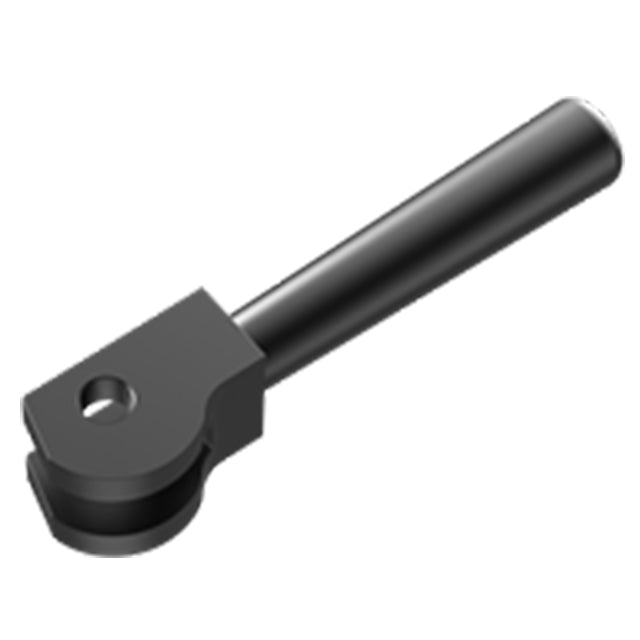

Straddle-type cam handle that can be used with an Eye Bolt or a custom-made drawbar. Continuous-rise spiral cam locks securely in any position.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | carburized-hardened | Black Oxide | Yes | Yes |
Parts Specification
| Matching Eyebolt Size (Inch) | A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B Nominal (Inch) | B Actual (Inch) | C (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) |
| 3/4-10" | 5/8" | 0.626" | 3/4" | 0.766" | 5-1/8" | 0.141" | 5/8" | 1-1/2" | 3/8" | 1.19" | 1.00" | 1.15" |
