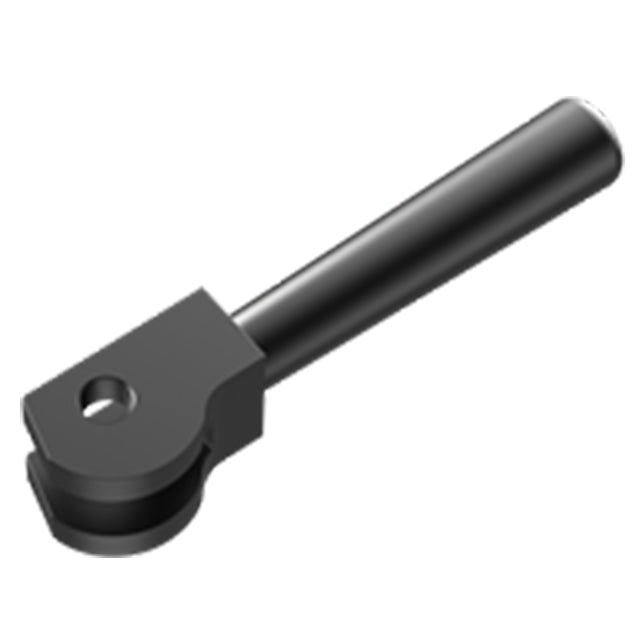

Cam Handles
Straddle-type cam handle that can be used with an Eye Bolt or a custom-made drawbar. Continuous-rise spiral cam locks securely in any position.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| Mild Steel | carburized-hardened | Black Oxide | Yes | Yes |
Parts Specification
| Matching Eyebolt Size (Inch) | A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B Nominal (Inch) | B Actual (Inch) | C (Inch) | E (Inch) | F (Inch) | G (Inch) | H (Inch) | J (Inch) | K (Inch) | L (Inch) |
| 1/4-20" | 3/16" | 0.188" | 1/4" | 0.266" | 2-17/32" | 0.046" | 1/4" | 5/8" | 3/16" | 0.40" | 0.33" | 0.38" |
