Spring Stop Buttons-Flat Face

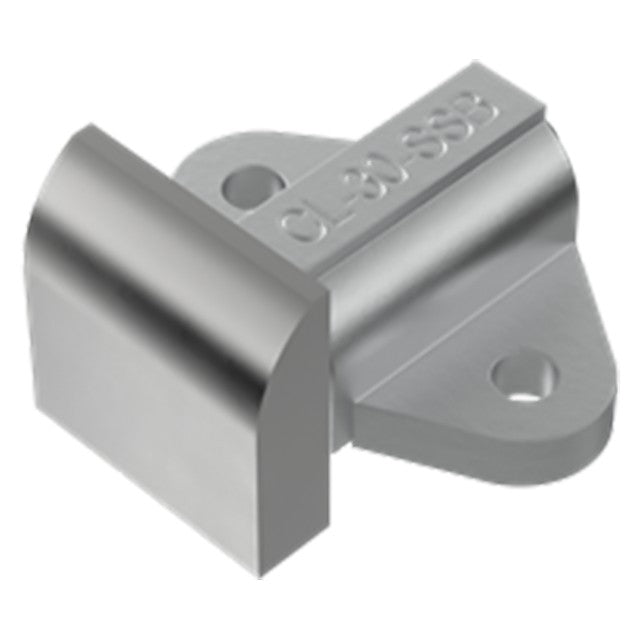

Spring Stop Buttons are flange-mounted Spring Plungers with a large contact face, ideal for applying side force to hold a workpiece against its locators until clamps are in place, and for other light clamping jobs. Type C, is ideal for flat-sided workpieces. Large bevel on the plunger makes loading easier. Made in USA.
Application Information
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Aluminum Alloy | - | - | Yes | Yes |
| Spring | Spring Steel | - | - | Yes | Yes |
| Screw | Steel | - | - | Yes | Yes |
| Plunger | Mild Steel | Carburized-Hardened | Zinc Plated Clear Chromate | Yes | Yes |
Parts Specification
| Stroke | Initial Contact Force (lbs) | Halfway Contact Force (lbs) | Final Contact Force (lbs) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G | L (inch) | M (inch) | N (inch) | P (inch) | R (inch) |
| 1/8 | 1.5 lbs. | 2 lbs. | 2.5 lbs. | 0.656" | 11/32" | 21/32" | 7/16" | 3/16" | 7/32" | #5 or M3 | 3/16" | 5/8" | 3/16" | 5/8" | 1/16" |
