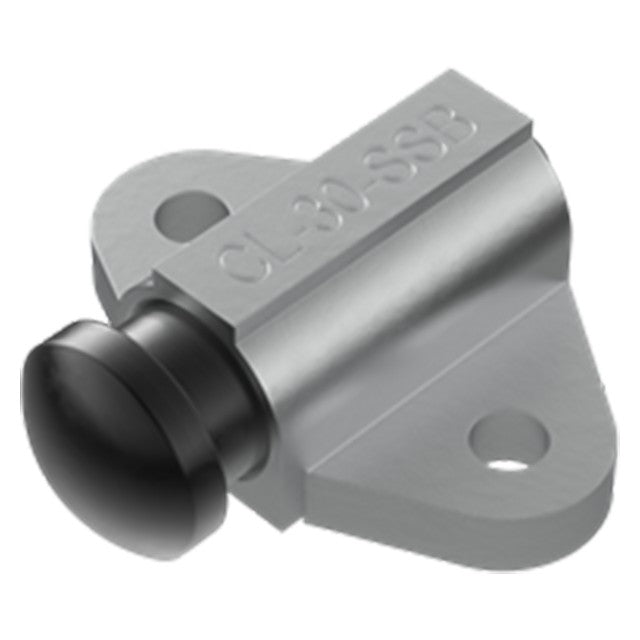

Spring Stop Buttons-Spherical Radius
Spring Stop Buttons are flange-mounted Spring Plungers with a large contact face, ideal for applying side force to hold a workpiece against its locators until clamps are in place, and for other light clamping jobs. Type A, has a spherical-radius plunger to exert contact force at a single point. Choice of hardened steel plunger, stainless steel plunger, or Delrin plunger. Made in USA.
Application Information
https://cdn.shopify.com/s/files/1/0852/7223/2237/files/CL-10A-SSB-ApplicationInformation1.png
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Body | Aluminum Alloy | - | - | Yes | Yes |
| Spring | Stainless Steel | - | - | Yes | Yes |
| Socket-Head Cap Screw | Stainless Steel | - | - | Yes | Yes |
| Plunger | 300-Series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| Stroke | Initial Contact Force (lbs) | Halfway Contact Force (lbs) | Final Contact Force (lbs) | A (inch) | B (inch) | C (inch) | D (inch) | E (inch) | F (inch) | G | H Diameter (inch) | J (inch) | R (inch) |
| 1/8 | 1.5 lbs. | 2 lbs. | 2.5 lbs. | 0.656" | 11/32" | 19/32" | 7/16" | 3/16" | 7/32" | #5 or M3 | 3/8" | 1/8" | 1/16" |
