Carr Lock Jigsaw Vise Plates

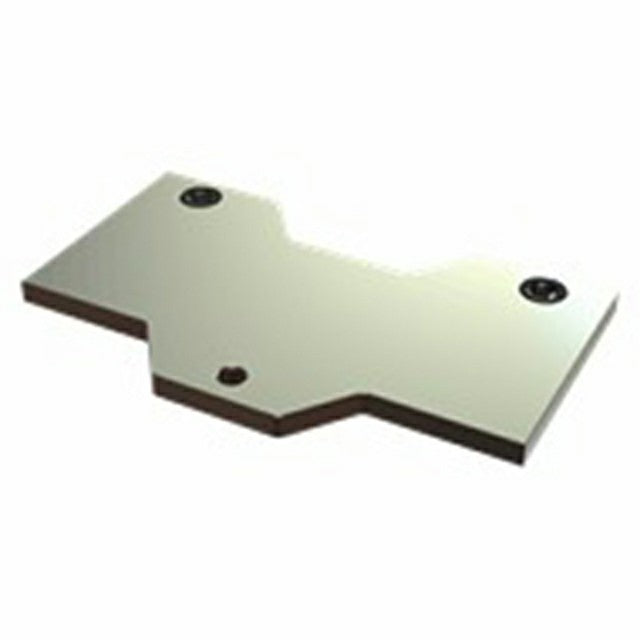

Carr Lock Fixture Plates are precision-machined MIC-6 cast aluminum plates in a wide range of standard sizes to use as a base for building quick-change fixtures. The 10 x 16 Jigsaw Vise Plate is .750" thick and has three locating/mounting holes for 20mm Carr Lock Clamps. Made in USA.
Application Information
Jigsaw Vise Plates have an interlocking design to allow mounting vises and other narrow fixtures close together.
Accuracy
The Carr Lock System is extremely accurate. All Receiver-Bushing installation holes are located +/-.0002" from their primary reference hole. Clamping repeatability is +/-.0005", while bushing concentricity is .0002" TIR. The resulting x/y-axis repeatability of a mounted fixture plate is +/-.0028" considering all tolerance accumulation.
Mounting
To fasten the Carr Lock Jigsaw Vise Plate to a subplate, begin by inserting a Carr Lock Clamp into each of the three holes. Next, fully tighten the clamps one at a time-first the clamp in the primary liner bushing, then the clamp in the secondary liner bushing, then the clamp in the clearance hole.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Fixture Plate | MIC-6 precision-machined cast aluminum | - | - | Yes | Yes |
| Liner Bushing | 1144 Steel | Heat Treated Rc 58-64 | Black Oxide | Yes | Yes |
Parts Specification
| Plate Size | Plate Thickness (Inch) | Carr Lock Clamp Spacing |
| 10 x 16 | 0.750" | 8 x 12 |
