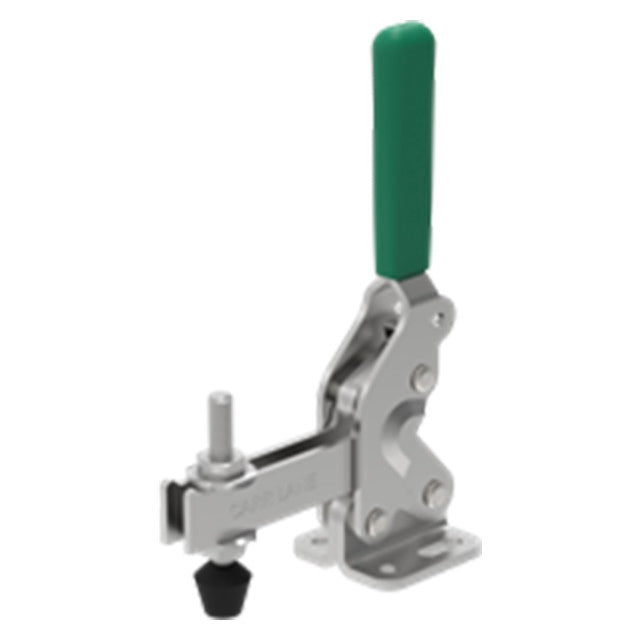

CL-1000-HCTC-1000lbs.
Quick acting High-Capacity Toggle Clamp with almost vertical clamping. Featuring improved clearance for safety and hardened bushings at critical pivot points. This clamp also has a slotted base allowing both inch and metric hole mounting options. 1,000 lbs. holding capacity.
Material Chart
| Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | Mild Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | Stainless Steel | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
Parts Specification
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) |
| Open Arm, Flange Base | 1000lbs. | 0.07lbs. |
