Pivoting Edge Clamp

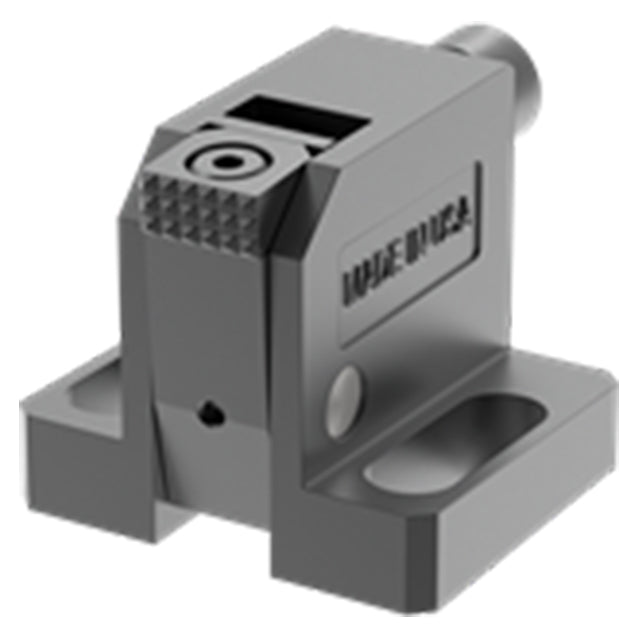

This edge clamp is well suited for holding large castings and other tall workpieces. The pivoting jaw exerts clamping force forward and downward at the same time. The jaw has a replaceable serrated gripper made of hardened tool steel for high-production durability. The slotted base provides adjustability and has a tapered top surface to prevent the clamp from moving. Fasten with two Socket-Head Cap Screws.
Application Information
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Body and Jaw | 1018 Steel | - | Black Oxide | |
| Edge Gripper | M-2 tool steel | Heat Treated Rc 60-62 | Black Oxide | |
| Dowel Pin | 4140 Alloy Steel | - | - |
Parts Specification
| Maximum Clamping Stroke | Mounting Screw Size | Thrust Screw Size | Ball-end Thrust Screw (furnished) | Edge Gripper (furnished) |
| 1/2 | 1/2-13 or M12 | 1/2-20 | CL-80-BTS-1.75 FURNISHED | CL-12-EG-6 FURNISHED |
