CL-100-PA Series-360lbs.

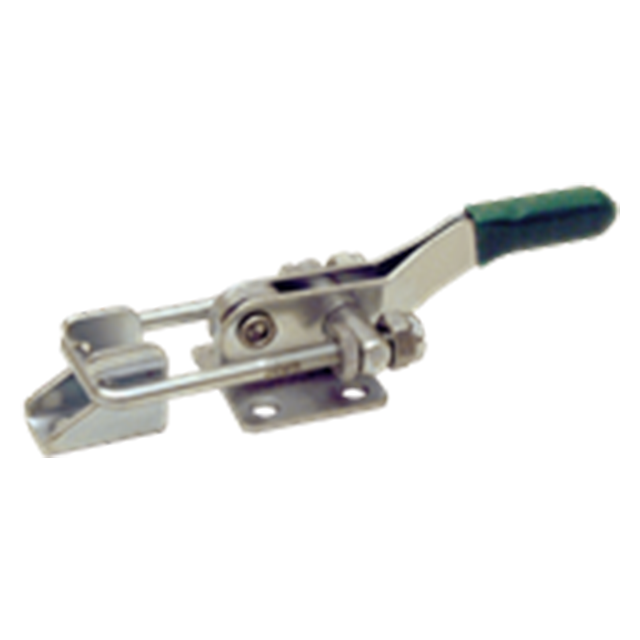

CL-100-PA
Miniature latch clamp with high holding capacity and a threaded U bolt for adjustability. Large, comfortable handle grip. 1-3/16" drawing movement. Threaded U bolt allows a 25/64" adjustment range. 360 lbs. holding capacity.
Design Considerations
To achieve full holding capacity, U-bolt-type latch clamps must be used together with the furnished latch plate, or with a suitable custom latch plate of equal width and centerline height.
Material
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Clamp Body | 1008, 1010, and/or 1018 Steel | - | Zinc plated clear chromate | ✔ | ✔ |
| Rivets | 400-Series Stainless | - | - | ✔ | ✔ |
| Handle | Vinyl | - | - | ✔ | ✔ |
| Description | Holding Capacity (lbs.) | Shipping Weight (lbs.) | Replacement U Bolt | Replacement Latch Plate |
| Flanged Base | 360lbs. | 0.2lbs. | CL-100-PA-UBOLT | CL-100-PA-L |
