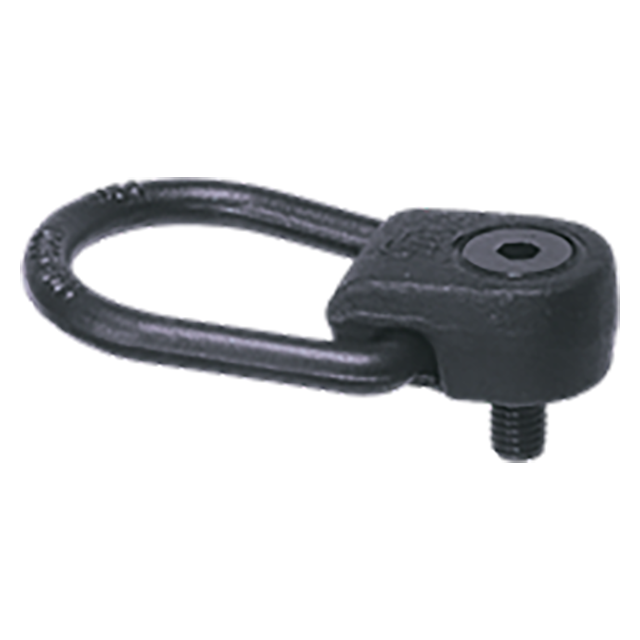

Safety Hoist Rings
Forged base rotates 360° while the solid-loop forged ring pivots 180°, to allow lifting from any direction. Made in USA.
Installation
Fasten using the installation torque specified in the dimension table. Always install so that the hoist ring can pivot and swivel freely.
Material
| Safety Hoist Rings | |||||
| Item | Material | Heat Treat | Finish | ||
| Base | Forged 1045 Steel | - | Black Oxide Finish | ||
| Ring | Forged 4130 Steel | Magnafluxed per ASTM E-1444 | Black Oxide Finish | ||
| Screw | Alloy Steel | Heat Treated | Black Oxide Finish | ||
Parts Specification
| Load Rating (lbs) | A (inch) | B (inch) | C (inch) | D (inch) | F (inch) | G (inch) | H Dia (inch) | J Thread (inch) | K (inch) | R (inch) | Installation Torque (ft-lbs) |
| 2500 lbs | 1-5/8" | 7/8" | 1-7/8" | 7/8" | 1-3/4" | 1-5/16" | 7/16" | 5/8-11" | 7/8" | 1-1/8" | 42-50 ft-lbs |
