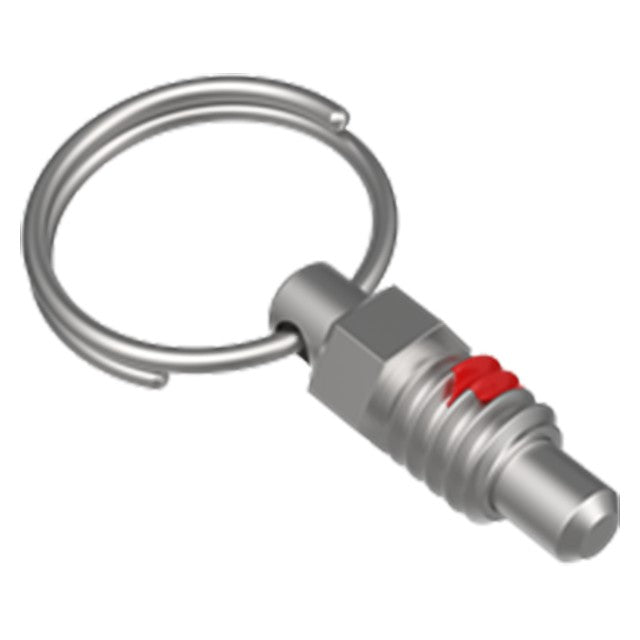

Hand-Retractable Plungers-Pull Ring
Extremely compact spring-loaded plunger that stays extended by spring force except when manually held in retracted position (non-locking). Handy pull ring allows quick actuation, yet folds out of the way when not in use. Made in USA.
Operation
Extended
Retracted
Material
| Delrin Plunger | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger, Body, Knurled Head and Spring | 300-series Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Initial End Force (lbs) | Final End Force (lbs) | B Diameter (inch) | C (inch) | D (inch) | E (inch) | F Diameter (inch) | G (inch) | H (inch) | J (inch) |
| 5/8-11 | 1.25 lbs. | 5 lbs. | 0.375" | 7/16" | 11/16" | 1" | 1" | 5/32" | 5/16" | 5/8" |
