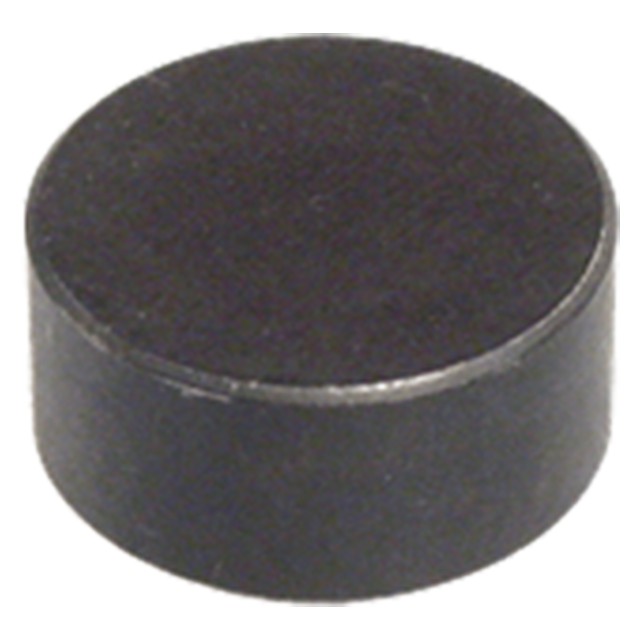

Round Grippers
Flat are hard, replaceable inserts used to provide additional wear resistance when installed in a fixture. The hardened steel grippers shown here are the most economical and impact resistant. Made in USA.
Installation
These tapped Round Grippers can be fastened from behind with a socket-head cap screw. Grippers can be recess-mounted in a flat-bottom hole, or surface mounted to use as a rest pad. Tapped Round Grippers can also be installed in Gripper Swivel Pads and Gripper Swivel Contact Bolts.
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 8620 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| A Diameter (Inch) | B Nominal (Inch) | B Actual (Inch) | C Thread (Inch) | D (Inch) |
| 5/8" | 3/8" | 0.3750" | 1/4-28" | 3/16" |
