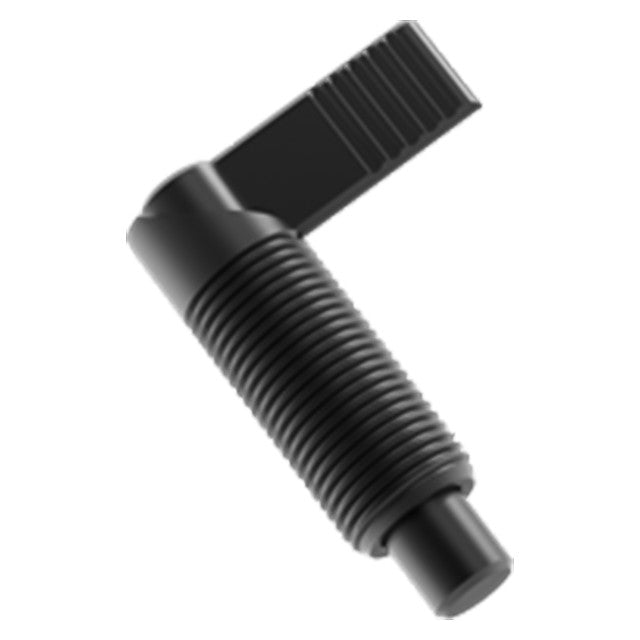

Hand-Retractable Plungers Cam Handle
Precision Cam actuated index plunger. Threaded-body version allows adjustment and can be secured with an optional Jam Nut. Provides high strength and durability in an extremely compact assembly. Hardened and ground plunger.
Material
| Item | Material | Heat Treat | Finish | RoHS |
| Lever Arm | Steel | - | Black Oxide | Yes |
| Plunger | Steel | Heat Treated | - | Yes |
| Body | Steel | - | Black Oxide | Yes |
| Sleeve | Plastic | - | - | Yes |
Parts Specification
| A Diameter (inch) | B Thread | C (inch) | D (inch) | E (inch) | F (inch) | Initial End Force (lbs) | Final End Force (lbs) |
| 0.39" | 5/8-18 | 2.20" | 0.39" | 1.26" | 1.18" | 2.5 lbs. | 6.5 lbs. |
