Mill Fixture Keys

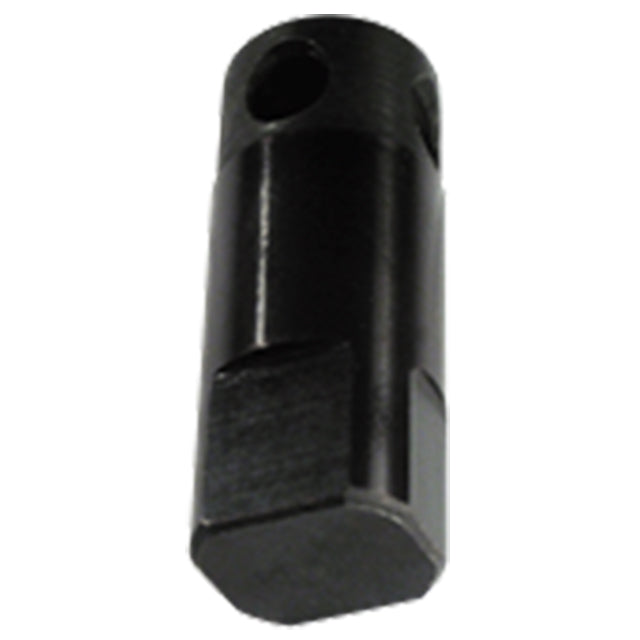

Removable-type fixture key that installs in a 7/8" reamed hole. Fits two different table-slot sizes, 11/16" and 13/16", by turning 90°. If desired, keys can be removed before machining, after the fixture is fastened. Crossholes in the top make insertion and removal easier. Concentricity within .0005" TIR. Made in USA.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1215 Steel | Carburized-Hardened | Black Oxide | Yes | Yes |
Parts Specification
| Table Slot Sizes (Inch) | A (Inch) | C (Inch) | E (Inch) | F (Inch) |
| 11/16 or 13/16" | 0.6873" | 0.8123" | 1.00" | 2.20" |
