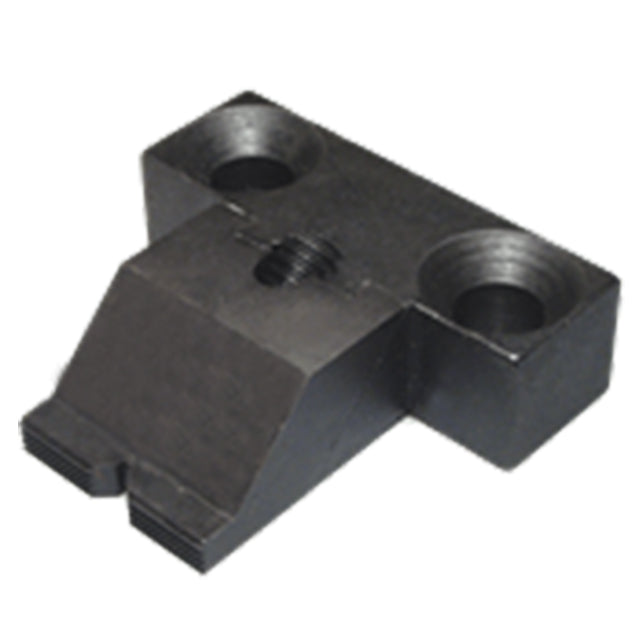

Serrated Fixed Edge Clamp
These low-profile clamps are ideal for securely gripping the side of a workpiece to keep the top clear for machining, especially when a large clamping range is required to accommodate workpiece-size variations. The serrated jaw slides at a 45° angle to exert clamping force both forward and downward simultaneously. Clamp by turning the socket-head screw in the sliding nose with a hex wrench. V-groove in nose is useful for clamping round parts or corners. The fixed edge clamps are ideal for permanent fixtures, because they have two fixed mounting holes instead of a slot. This allows the clamp to be more compact, and ensures correct position without adjustment. The Flat-Head Socket Screws used for mounting absolutely prevent slippage (order separately). Made in USA.
Low-Nose Version
The low-nose version is ideal for thin parts and other applications where extra machining clearance is required.
Material
| Item | Material | Heat Treat | Finish | RoHS | |
| Body and Nose | 1018 Steel | Carburized Hardened | Black Oxide | Yes | Yes |
| Clamping Screw | 4140 Steel | Heat Treated Rc 43-45 | Black Oxide | Yes | Yes |
Parts Specification
| Mounting Screw Size | A | B | C | D | E | F | K | L | M | N | P | Q |
| 5/16-18 | 1-27/32 | 5/8 | 1 | 1 | 1-3/4 | 11/16 | 1/4 | 1-5/16 | 5/32 | 1/8 | 1/8 | 1-1/2 |
