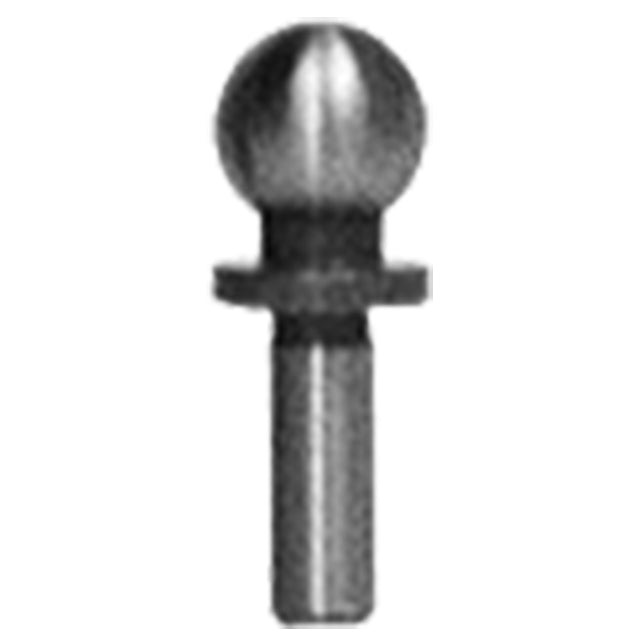

Construction Balls-Shoulder Type
Precision tooling ball used as a reference point for critical inspection, layout, and machining operations. Shoulder type has a precision height-reference shoulder to locate the ball in three dimensions. Concentricity between ball and shank is .0002" TIR. The 1/4" ball size is in steel and stainless steel. Made in USA.
Application Information
Shoulder-Type Construction Balls provide a reference point in three dimensions.
Material
| Steel | |||||
| Material | Heat Treat | Finish | DFARS | RoHS | |
| 1144 Steel or equivalent | Heat Treated Rc 54-56 | - | Yes | Yes | |
Parts Specification
| Ball Diameter Nominal (Inch) | Ball Diameter Actual (Inch) | A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | E Diameter (Inch) | F (Inch) | Style |
| 1/4" | 0.2502 / .2498" | 1/8" | 0.1250 / .1246" | 0.56" | 0.25" | 0.2000" | 1 |
