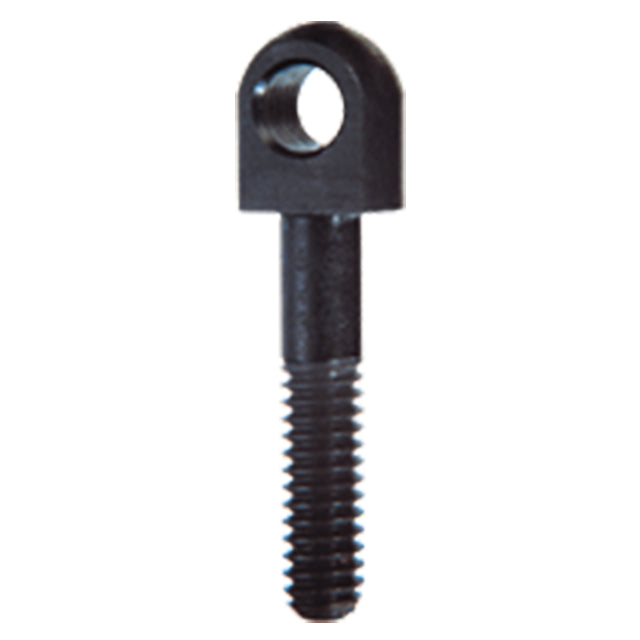

Swing Bolts
Shoulder-type eye bolt that can be used as a stationary hinge point. Reamed hole for smooth bearing.
Application Information
Material
| Material | Heat Treat | Finish | DFARS | RoHS |
| 1144 steel, 115,000 psi min tensile strength, 100,000 psi min yield strength | - | Black Oxide | Yes | Yes |
Parts Specification
| A Thread (Inch) | B Diameter Nominal (Inch) | B Diameter Actual (Inch) | C (Inch) | D (Inch) | E (Inch) | F Diameter (Inch) | G Nominal (Inch) | G Actual (Inch) | H (Inch) |
| 5/16-18" | 5/16" | 0.312" | 1" | 1-5/8" | 2" | 5/8" | 3/8" | 0.375" | 3/8" |
