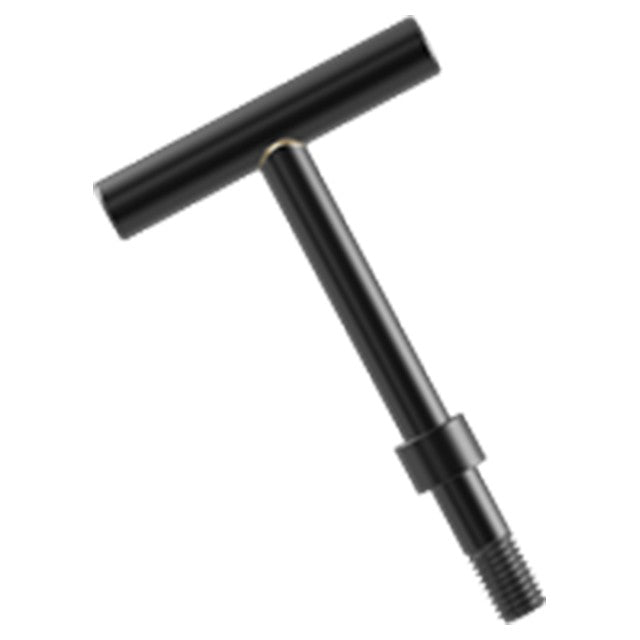

Clamping Pins
These threaded alignment pins can be used for locating and clamping, or clamping only, depending on extended screw length. The clamping bushing is furnished separate from the pin, and must be welded in place at the proper length to suit the application. Made in USA.
Application Information
Clamping Pins are screw clamps that also serve as medium-accuracy alignment pins
Material
| Item | Material | Heat Treat | Finish |
| Pin | 1215 Steel | Carburized-hardened | Black Oxide |
| Handle and Weld-On Bushing | 1215 Steel | - | Black Oxide |
Parts Specification
| A Diameter Nominal (Inch) | A Diameter Actual (Inch) | B (Inch) | C (Inch) | D Diameter (Inch) | E Diameter (Inch) | F Diameter (Inch) | G Thread (Inch) |
| #10" | 0.193" | 3" | 1-1/2" | 1/4" | 3/8" | 0.195" | #10-24" |
