Hoist Eye 360

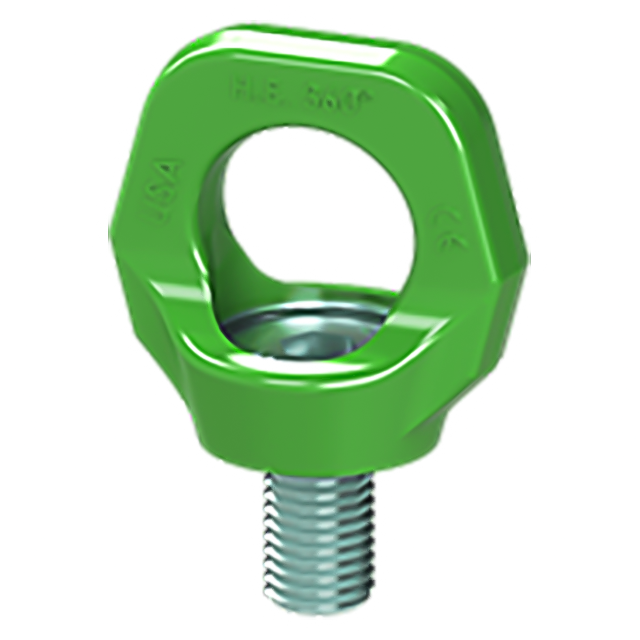

Hoist Eye 360 is a forged lifting eye that can be rotated 360 Degree after installation, to align with the pulling direction. This compact assembly features a specially designed shoulder bolt, which rotates freely in the precisely machined lifting-eye body and is held captive by a retaining ring. Unlike conventional lifting eyes, Hoist Eye 360 can be used at full rated load capacity when pulling at any angle 0 to 90 Degree from the bolt axis.
Application Information
These unique lifting-eye assemblies can be rotated freely after installation, to align with the pulling direction.
Safety Precautions
Do not exceed rated load capacity. Do not work, stand, or crawl near the load of a Hoist Eye. Do not use a Hoist Eye to lift a load that can rotate while under load; Swivel Hoist Rings should be used for such loads. Do not shock load Hoist Eyes; instead gradually increase lifting of the load to minimize load shock. Do not force hooks or any other fittings into the eye; they must fit freely. Do not weld or machine Hoist Eyes, or perform any repair. Do not expose Hoist Eyes to extreme temperatures or environmental conditions, as this may permanently reduce load capacity. Periodic inspection of installed Hoist Eyes is highly recommended. Also see general Hoist Ring Safety Precautions at the beginning of this catalog section.
Material
| Item | Material | Heat Treat | FINISH |
| Body | High-Strength Forged Alloy Steel | - | High-Visibility Powder-Coat |
| Bolt | High-Stength Alloy Steel | - | Corrosion Resistant Plating |
| Retaining Ring | Spring Steel | - | - |
Parts Specification
| Load Rating (kg) | G thread (mm) | Threadpitch (mm) | A Diameter (mm) | B (mm) | C (mm) | D (mm) | E ±3.05 (mm) | F (mm) | H (mm) | I hex (mm) | J Diameter (mm) | K Diameter (mm) | Installationtorque(nm) |
| 750 | M12mm | 1.75mm | 29mm | 54mm | 10mm | 11mm | 19mm | 42mm | 36mm | 8mm | 30mm | 20mm | 38 |
