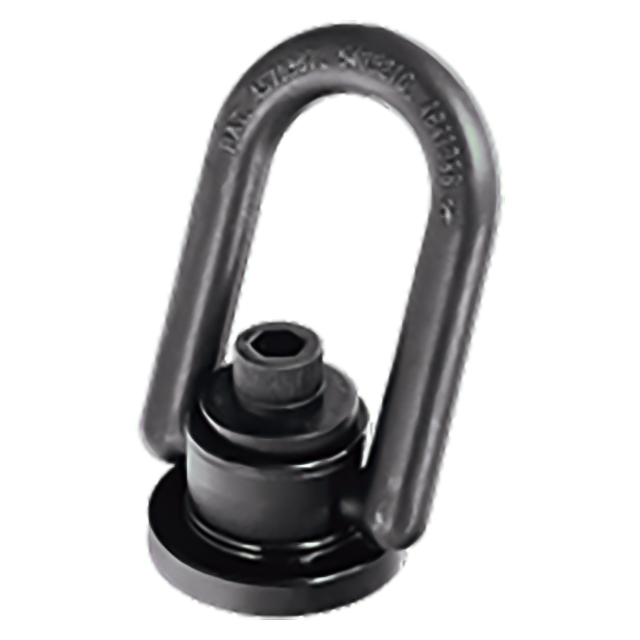

Heavy-Duty Weld-Mount Swivel Hoist Rings
These Heavy-Duty Swivel Hoist Rings are mounted by welding. Forged alloy-steel ring pivots 180 Degree and swivels 360 Degree simultaneously to allow lifting from any direction.
Installation
Weld around the entire perimeter of the base (certified welding). Always install so that the hoist ring can pivot and swivel freely.
Material
| Item | Material | Heat Treat | FINISH |
| Heavy-Duty Weld-Mount Swivel Hoist Rings | 4140 Steel | Heat Treated | Black Oxide finish (Cadmium Plating available as a special) |
Parts Specification
| Load Rating (lbs) | A Thread | C (Inch) | D (Inch) | E Diameter (Inch) | F (Inch) | G (Inch) | M (Inch) | N Diameter (Inch) | Q (Inch) |
| 24000 | 1-1/4-7" | 3.07" | 9.46" | 1.25" | 2" | 6.75" | 3.76" | 4.38" | 1/2" |
