Product Specifications
| Manufacturer Part Number | 02753422 |
| Body Diameter 1 (Decimal Inch) | 1.063" |
| Body Diameter 1 (mm) | 27.00mm |
| Body Diameter 2 (Decimal Inch) | 1.339" |
| Body Diameter 2 (mm) | 34.00mm |
| Connection Bore Diameter (Decimal Inch) | 0.625" |
| Connection Bore Diameter (mm) | 15.88mm |
| Minimum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Minimum Connection Bore Diameter (mm) | 15.88mm |
| Maximum Connection Bore Diameter (Decimal Inch) | 0.625" |
| Maximum Connection Bore Diameter (mm) | 15.88mm |
| Thread Diameter Size | M12x1 |
| Body Length (Decimal Inch) | 2.244" |
| Body Length (mm) | 57.00mm |
| Functional Length (Decimal Inch) | 1.614" |
| Functional Length (mm) | 41.00mm |
| Minimum Functional Length (Decimal Inch) | 1.221" |
| Protruding Length (Decimal Inch) | 3.150" |
| Protruding Length (mm) | 80.00mm |
| Clamping Length (Decimal Inch) | 1.535" |
| Clamping Length (mm) | 39.00mm |
| Overall Length (Decimal Inch) | 4.095" |
| Overall Length (mm) | 104.00mm |
| Connection Bore Depth (mm) | 50.50mm |
| Body Half Taper Angle Degree) | 4.5 Degree |
| Radial Location (Decimal Inch) | 0.551" |
| Radial Location (mm) | 14.00mm |

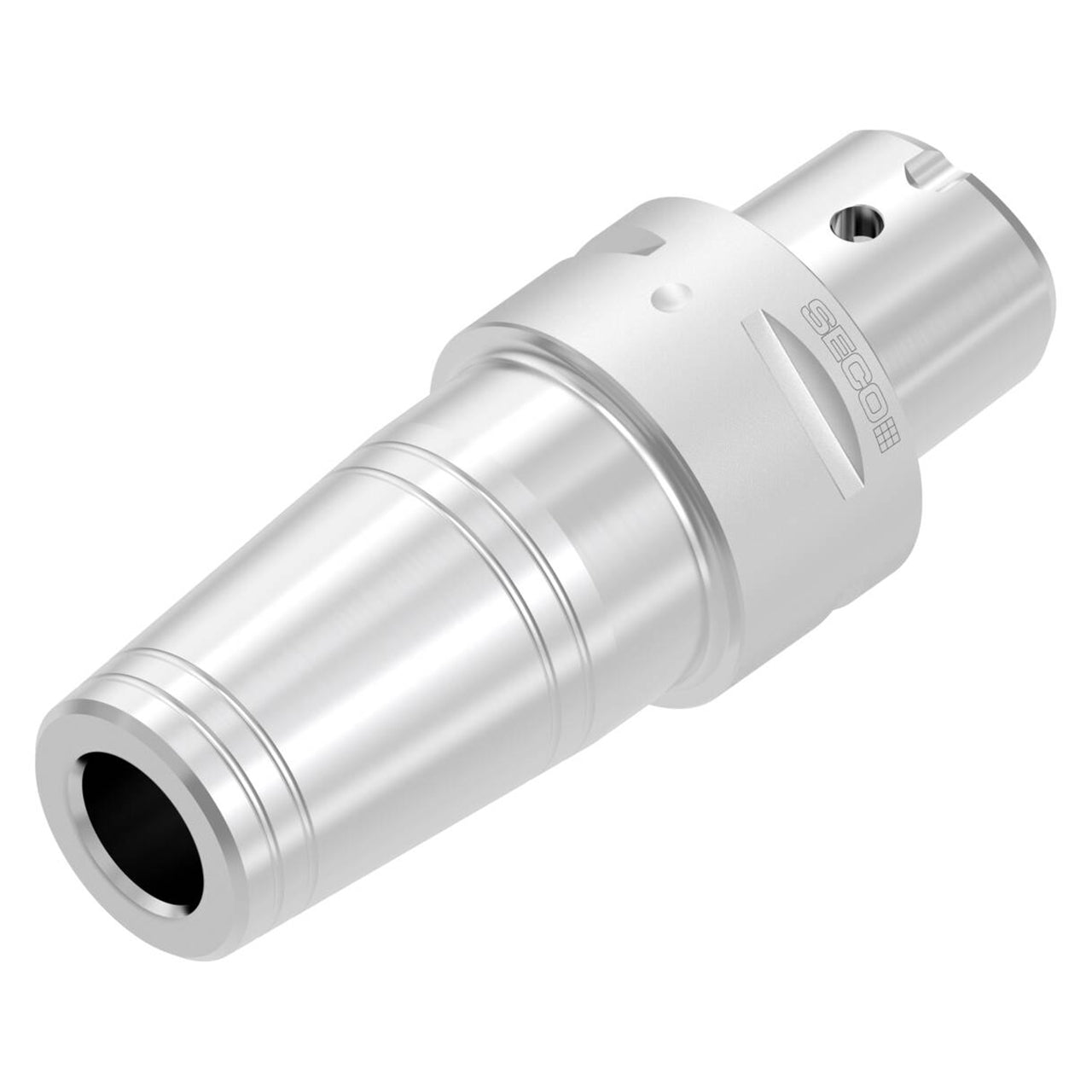

| Product Type | Shrink-Fit Tool Holder |
