Product Specifications
| Manufacturer Part Number | 74017224 |

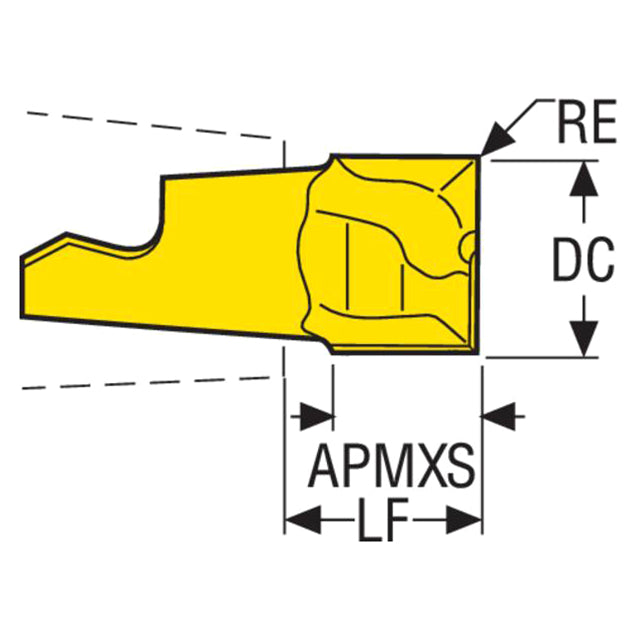

| Cutting Diameter (mm) | 11.70mm |
| Minimum Helical Interpolation Hole Diameter (mm) | 14.20mm |
| Maximum Helical Interpolation Hole Diameter (mm) | 22.60mm |
| Cutting Edge Effective Length (mm) | 8.25mm |
| Functional Length (mm) | 10.18mm |
| Maximum Depth of Cut (mm) | 8.20mm |
| Corner Radius (mm) | 0.30mm |
| Cutting Edge Count | 1 |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 90 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Rake Radial Angle (Degree) | -15 Degree |
| Maximum Ramping Angle (Degree) | 15 Degree |
| Material | Carbide |
| Coating | AlTiN |
| Product Type | Slotting Milling Tip Insert |
