Product Specifications
| Manufacturer Part Number | 03128631 |
| Shank Width (Decimal Inch) | 1.000" |
| Shank Width (mm) | 25.40mm |
| Maximum Cutting Depth (Decimal Inch) | 0.748" |
| Maximum Cutting Depth (mm) | 19.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 1.000" |
| Height of Tool Holder Shank (mm) | 25.40mm |
| Functional Length (Decimal Inch) | 1.339" |
| Functional Length (mm) | 34.00mm |
| Shank Length (Decimal Inch) | 4.646" |
| Shank Length (mm) | 118.00mm |
| Overall Length (Decimal Inch) | 5.984" |
| Overall Length (mm) | 152.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Machine Side Group | Square shank |
| Shank Type | Square shank |
| Version (Internal/External/Both) | External |

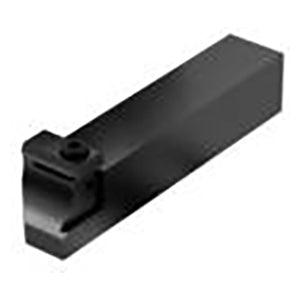

| Product Type | Indexable CutOff Blade Tool Block |
