Product Specifications
| Manufacturer Part Number | 03128628 |
| Shank Width (Decimal Inch) | 0.625" |
| Shank Width (mm) | 15.88mm |
| Maximum Cutting Depth (Decimal Inch) | 0.748" |
| Maximum Cutting Depth (mm) | 19.00mm |
| Height of Tool Holder Shank (Decimal Inch) | 0.625" |
| Height of Tool Holder Shank (mm) | 15.88mm |
| Functional Length (Decimal Inch) | 1.339" |
| Functional Length (mm) | 34.00mm |
| Shank Length (Decimal Inch) | 3.150" |
| Shank Length (mm) | 80.00mm |
| Overall Length (Decimal Inch) | 4.488" |
| Overall Length (mm) | 114.00mm |
| Coolant Supply Property | 1 |
| Cutting Direction | Left Hand |
| Machine Side Group | Square shank |
| Shank Type | Square shank |
| Version (Internal/External/Both) | External |

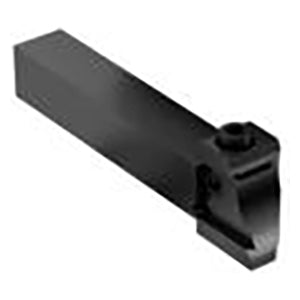

| Product Type | Indexable CutOff Blade Tool Block |
