Product Specifications
| Manufacturer Part Number | 02947183 |
| Minimum Cutting Diameter Internal (Decimal Inch) | 2.087" |
| Minimum Cutting Diameter Internal (mm) | 53.00mm |
| Contact Surface Diameter Machine Side (Decimal Inch) | 1.575" |
| Contact Surface Diameter Machine Side (mm) | 40.00mm |
| Maximum Cutting Depth (Decimal Inch) | 0.394" |
| Maximum Cutting Depth (mm) | 10.00mm |
| Cutting Width (Decimal Inch) | 0.158" |
| Cutting Width (mm) | 4.00mm |
| Functional Length (Decimal Inch) | 1.260" |
| Functional Length (mm) | 32.00mm |
| Head Length (Decimal Inch) | 0.886" |
| Head Length (mm) | 22.50mm |
| Functional Width (Decimal Inch) | 1.240" |
| Functional Width (mm) | 31.50mm |
| Torque (Nm) | 5Nm |
| Coolant Supply Property | 1 |
| Cutting Direction | Right Hand |
| Tool Cutting Edge Angle In Feed Direction End (Degree) | 95.9 Degree |
| Tool Cutting Edge Angle In Feed Direction Side (Degree) | 90 Degree |
| Shank Type | GL-Connection |
| Version (Internal/External/Both) | Internal |

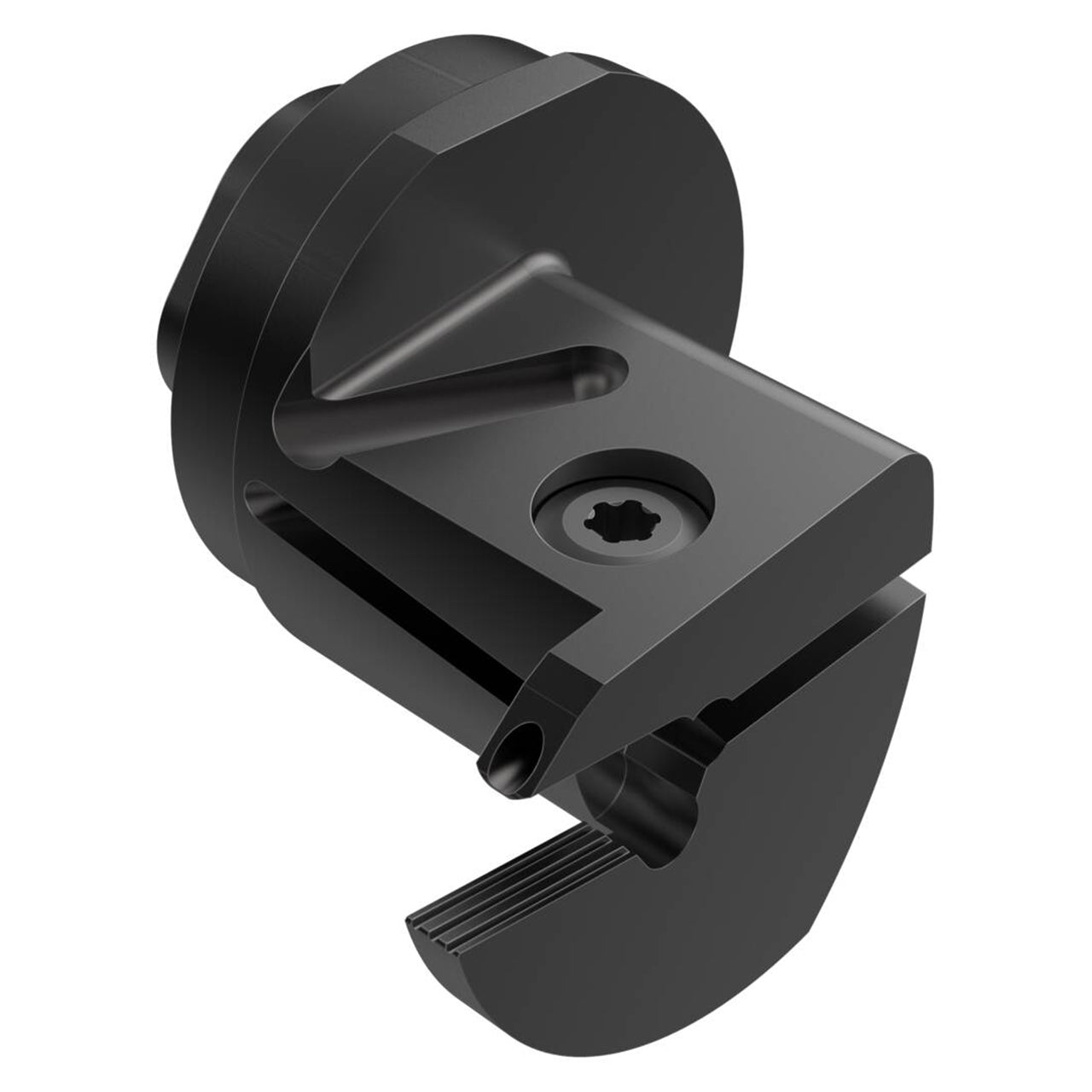

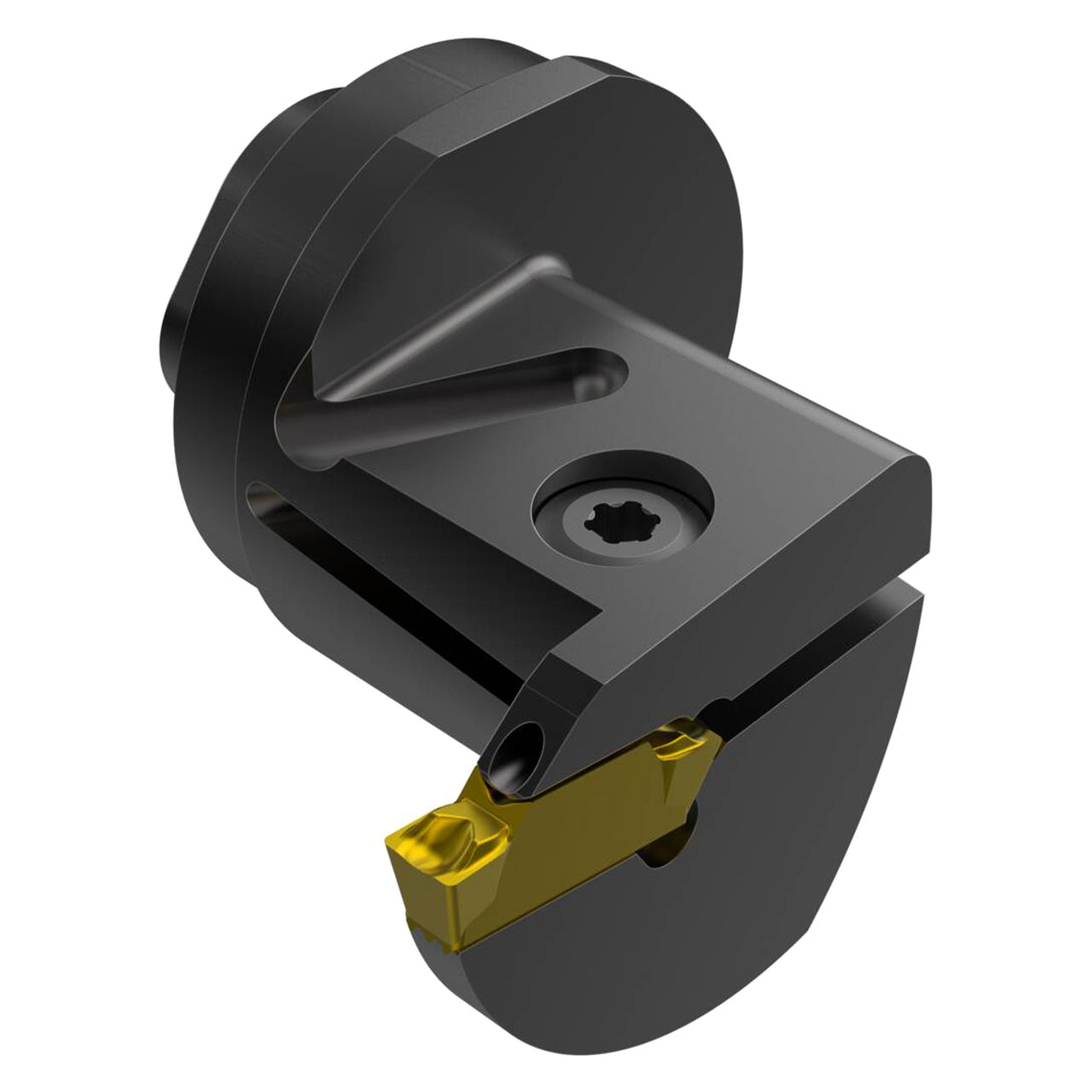

| Product Type | Modular Grooving Head |
