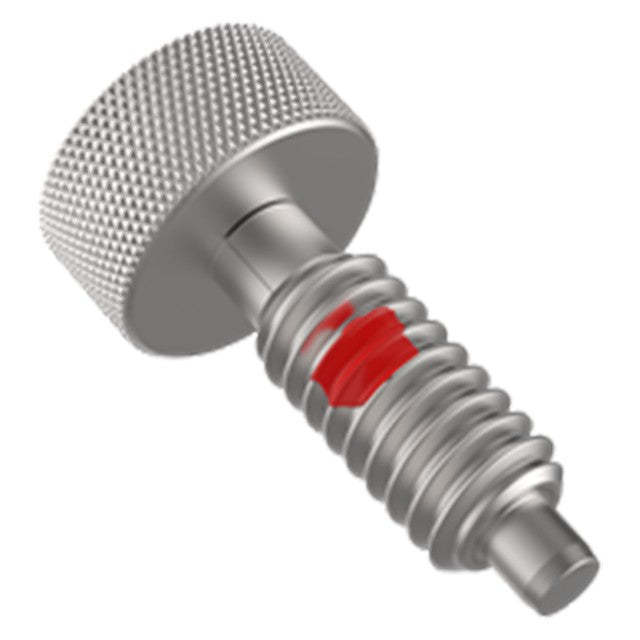

Hand-Retractable Plungers-Knurled Head
Spring-loaded plunger that locks in retracted position. To lock, pull knurled knob back and turn 90°. Slight taper on plunger tip for easy alignment. Made in USA.
Operation
Pull knob to retract
Turn 90° in either direction to lock
Material
| Stainless Steel | |||||
| Item | Material | Heat Treat | Finish | DFARS | RoHS |
| Plunger,Body and Knurled Head | 300-series Stainless Steel | - | - | Yes | Yes |
| Spring | 17-7PH Stainless Steel | - | - | Yes | Yes |
Parts Specification
| A Thread | Thread Pitch (mm) | Initial End Force (n) | Final End Force (n) | B Diameter (mm) | C (mm) | D (mm) | E (mm) | F Diameter (mm) |
| M8 | 1.25 mm | 7 N | 27 N | 4 mm | 4.8 mm | 16 mm | 7 mm | 16 mm |
